DIY: $5 Wired helmet Speakers (*Warning Large photos)

Hello,

I thought it would be nice to show everyone my inexpensive helmet speaker set up with a few pictures and blurbs on what I did and how I installed them. I am using a Icon Airmada and they fit superb!

Here are the speakers I have purchase at work from NCIX
Wicked Chill Stereo Headphones - Black

*note; This may not work on all helmets but if it does for yours, great!
*note2; Some application of disassembling headphone will not be the same if you do not buy the same set (duh!)
*note3; WARNING THERE ARE A LOT OF PHOTOs.
*note4; If I broke any rules, please tell me so I can fix them.

1) This is all you need, maybe replace the stuff animal with a glue gun and you will be set!




2) The unit itself; It sounds pretty decent for $5 but the overall product as a headphone was complete garbage.



3) Use the screwdriver to remove head rest from the driver enclosure. These were very cheap so it was super easy.



4) Unit after removal



5) Remove earpieces from the driver enclosure by simply tugging/ripping it off.



6) Unit after earpiece removal


7) Using a screw driver; remove the enclosure so in the end you'll be left with the speaker mounted on a plate.


8) Unit with enclosure removed.
*Note : This is also a good time to remove extra trim around the speaker to make it fit into your helmet. I also plan to trim mine down a little.


9) Some hot glue to prevent the wires being pulled out from the speaker!


10) Where I mounted them..



11) Speakers mounted and the cheek pads clipped back on. They fit really well without any distortion or discomfort.
Velcro can easily be used to seat them if you weren't as lucky as I was !



12) Wiring out from the back, down the inner of my jacket and in the change pocket where my MP3/Phone/idevice is located.



13) Finally here is a quick clip of the finished results, please excuse the slightly loud ending.

Advertisement
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008

Last edited by Qasual; 07-22-2013 at 03:16 PM.
Qasual is offline   Reply With Quote
Old 07-02-2013, 10:18 PM   #2
I *Fwap* *Fwap* *Fwap* to RS

fT-z33wor's Avatar

Join Date: Feb 2004
Location: vancouver
Posts: 1,523
Thanked 1,230 Times in 268 Posts
__________________

2001 WRX STi
2003 Supercharged 350z (sold)
1991 R32 GTR (sold)
2000 Civic SiR (sold)
1990 Civic Si-T (sold)
1986 MK1 Mr2 (sold)
2005 GSX-R 750 (sold)
2003 CBR 600RR (sold)
2007 Ducati 1098 track (sold)
2009 Kawasaki ZX6R (track build)
fT-z33wor is offline   Reply With Quote
Old 07-02-2013, 10:36 PM   #3
Willing to sell body for a few minutes on RS

quasi's Avatar

Join Date: Jul 2001
Location: Cloverdale
Posts: 10,228
Thanked 2,278 Times in 826 Posts
I use headphone that wrap around my ear which keeps them from moving. I don't know if I'd like having a cord hanging out the back of my helmet even when it's off but that's a creative way of adding speakers.
__________________



“The world ain't all sunshine and rainbows. It's a very mean and nasty place... and I donīt care how tough you are, it will beat you to your knees and keep you there permanently, if you let it. You, me or nobody, is gonna hit as hard as life. But ain't about how hard you hit... It's about how hard you can get hit, and keep moving forward... how much you can take, and keep moving forward. Thatīs how winning is done. Now, if you know what you worth, go out and get what you worth.” - Rocky Balboa
quasi is offline   Reply With Quote
Old 07-02-2013, 11:02 PM   #4
VAC Head Rotang Mod

Raid3n's Avatar

Join Date: Oct 2004
Location: GP
Posts: 10,377
Thanked 1,180 Times in 523 Posts
haha i was thinking of doing the same thing. only thing i'll be doing differently is attaching the speaker with velcro so that they can be removed if necessary
__________________
1990 FC3S
1984 GSX-R 400
2001 CBR600F4i

My Feedback (10-0-0)

Quote:
Originally Posted by Fei-Ji View Post
haha i can taste the cum in my mouth
Raid3n is offline   Reply With Quote
This post thanked by:
Old 07-03-2013, 08:49 AM   #5
MOD

Gh0stRider's Avatar

Join Date: Oct 2002
Location: VANCOUVER
Posts: 26,507
Thanked 7,099 Times in 1,842 Posts
i'll be getting sena bluetooth ones
__________________
M0D3RAT0R

Gh0stRider's Buy & Sell Feedback


Quote:
Originally Posted by CharlieH View Post
whole time i thought gh0strider was white lol

Gh0stRider is offline   Reply With Quote
This post thanked by:
Old 07-03-2013, 09:01 AM   #6
Rider

Qasual's Avatar

Join Date: Nov 2008
Location: Vancouver, BC
Posts: 589
Thanked 118 Times in 44 Posts
Digging these over the helmet speakers by Tork, haha .


Edit* Jesus $80 ?
http://www.torkworld.com/products/he...lmet-speakers/
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008

Last edited by Qasual; 07-04-2013 at 01:37 PM.
Qasual is offline   Reply With Quote
Old 07-03-2013, 09:43 AM   #7
Rider

dink's Avatar

Join Date: Oct 2004
Location: bby
Posts: 3,662
Thanked 287 Times in 111 Posts
I just did this on the weekend to my Arai.

Picked up a pair of JVC HA-S160-V and disassembled it. The speakers were about the size of a quarter if not smaller.

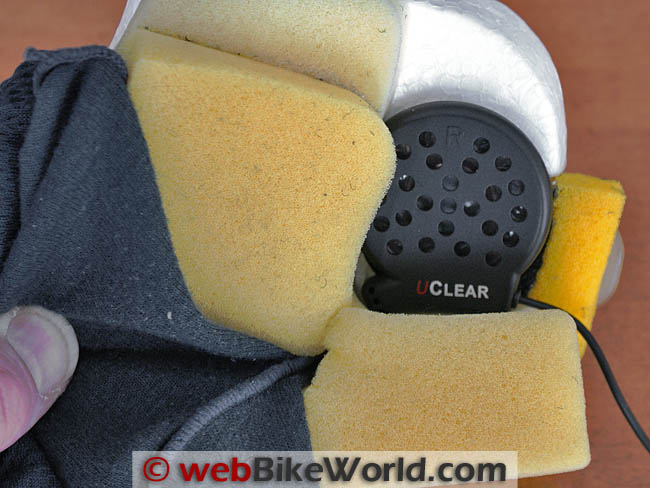

I took out the cheek pad and pulled aside the fabric. The Arai check pads have spacing for your ears without foam, so i stuck the speakers there with double-sided tape. Much like the picture below.



Pulled the covering fabric back over it and placed it back in helmet. I didn't lose much volume cause i removed all the headphone padding and just used the cheek pad fabric
__________________
http://www.revscene.net/forums/dink-8-0-t263995.html
dink is offline   Reply With Quote
Old 07-04-2013, 12:34 PM   #8
Why'd you do that for?

rk604's Avatar

Join Date: Sep 2007
Location: Vancouver
Posts: 1,395
Thanked 300 Times in 136 Posts
Quote:
Originally Posted by dink View Post
I just did this on the weekend to my Arai.

Picked up a pair of JVC HA-S160-V and disassembled it. The speakers were about the size of a quarter if not smaller.

I took out the cheek pad and pulled aside the fabric. The Arai check pads have spacing for your ears without foam, so i stuck the speakers there with double-sided tape. Much like the picture below.



Pulled the covering fabric back over it and placed it back in helmet. I didn't lose much volume cause i removed all the headphone padding and just used the cheek pad fabric

buy a sena already...you n james the only one left
rk604 is offline   Reply With Quote
This post thanked by:
Old 07-04-2013, 03:32 PM   #9
MOD

Gh0stRider's Avatar

Join Date: Oct 2002
Location: VANCOUVER
Posts: 26,507
Thanked 7,099 Times in 1,842 Posts
anyone wanna go halfers on a sena dual pack?
__________________
M0D3RAT0R

Gh0stRider's Buy & Sell Feedback


Quote:
Originally Posted by CharlieH View Post
whole time i thought gh0strider was white lol

Gh0stRider is offline   Reply With Quote
Old 07-04-2013, 03:50 PM   #10
Rider

Qasual's Avatar

Join Date: Nov 2008
Location: Vancouver, BC
Posts: 589
Thanked 118 Times in 44 Posts
Quote:
Originally Posted by Gh0stRider View Post
anyone wanna go halfers on a sena dual pack?
Maybe !
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008
Qasual is offline   Reply With Quote
Old 07-04-2013, 08:20 PM   #11
?NR
MonoPod 1 of 3

?NR's Avatar

Join Date: Jul 2001
Location: Internet
Posts: 7,254
Thanked 1,014 Times in 440 Posts
Quote:
Originally Posted by Gh0stRider View Post
anyone wanna go halfers on a sena dual pack?
Sam: im game. was gonna get one anyways.
?NR is offline   Reply With Quote
Old 07-05-2013, 01:28 AM   #12
I WANT MY 10 YEARS BACK FROM RS.net!

Timpo's Avatar

Join Date: Mar 2002
Location: ...
Posts: 20,379
Thanked 4,550 Times in 1,368 Posts
cool
Timpo is offline   Reply With Quote
Old 07-05-2013, 09:20 AM   #13
Support Team Mod

Gwilo's Avatar

Join Date: Apr 2001
Location: PoCo
Posts: 2,885
Thanked 307 Times in 154 Posts
The best part is the helmet speakers are 100 % legal

Earbuds 100% illegal
__________________

Impreza '08
Yamaha RS Warrior MidNight 1700 '05
Aprilia Mana 850 '09


"I hate to advocate drugs, alcohol, violence or insanity to anyone, but they've always worked for me."
-Hunter S. Thompson-
Gwilo is offline   Reply With Quote
Old 07-09-2013, 07:08 PM   #14
MOD

Gh0stRider's Avatar

Join Date: Oct 2002
Location: VANCOUVER
Posts: 26,507
Thanked 7,099 Times in 1,842 Posts
Tork Speaker Review - webBikeWorld

__________________
M0D3RAT0R

Gh0stRider's Buy & Sell Feedback


Quote:
Originally Posted by CharlieH View Post
whole time i thought gh0strider was white lol

Gh0stRider is offline   Reply With Quote
Old 07-09-2013, 07:27 PM   #15
Wunder? Wonder?? Wander???

Join Date: Feb 2013
Location: Vancouver
Posts: 200
Thanked 844 Times in 59 Posts
tried using my crappy iphone headphones since it's pretty good at taking in other sounds from outside but they just wouldn't stay in my ears when i pull my helmet down haha. tried my in ear beats by dre headphones and they seem to work pretty well but block off way too much sound for my liking
kev1n9121 is offline   Reply With Quote
Old 07-09-2013, 07:47 PM   #16
Support Team Mod

Gwilo's Avatar

Join Date: Apr 2001
Location: PoCo
Posts: 2,885
Thanked 307 Times in 154 Posts
I have the Tork

Picked them up at Motorcycle Accessories | Speakers | Alarms | Headsets
__________________

Impreza '08
Yamaha RS Warrior MidNight 1700 '05
Aprilia Mana 850 '09


"I hate to advocate drugs, alcohol, violence or insanity to anyone, but they've always worked for me."
-Hunter S. Thompson-
Gwilo is offline   Reply With Quote
Old 07-09-2013, 11:09 PM   #17
Where's my RS Christmas Lobster?!

double0seven's Avatar

Join Date: Jan 2010
Location: RichCity
Posts: 866
Thanked 362 Times in 129 Posts
I might be down for a dual pack!
Posted via RS Mobile
double0seven is offline   Reply With Quote
Old 07-10-2013, 10:49 AM   #18
Rider

Qasual's Avatar

Join Date: Nov 2008
Location: Vancouver, BC
Posts: 589
Thanked 118 Times in 44 Posts
I will be also adding velcro to my set up so if they don't sit in your helmet as well as it did in mine, not it will !
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008
Qasual is offline   Reply With Quote
Old 07-10-2013, 12:07 PM   #19
Rider

dink's Avatar

Join Date: Oct 2004
Location: bby
Posts: 3,662
Thanked 287 Times in 111 Posts
Quote:
Originally Posted by rk604 View Post
buy a sena already...you n james the only one left
yeah i bought one on ebay dual pack $230
__________________
http://www.revscene.net/forums/dink-8-0-t263995.html
dink is offline   Reply With Quote
Old 07-10-2013, 01:01 PM   #20
Rider

Qasual's Avatar

Join Date: Nov 2008
Location: Vancouver, BC
Posts: 589
Thanked 118 Times in 44 Posts
Quote:
Originally Posted by dink View Post
yeah i bought one on ebay dual pack $230
Wanna split that baby.
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008
Qasual is offline   Reply With Quote
Old 07-10-2013, 01:05 PM   #21
MOD

Gh0stRider's Avatar

Join Date: Oct 2002
Location: VANCOUVER
Posts: 26,507
Thanked 7,099 Times in 1,842 Posts
Quote:
Originally Posted by dink View Post
yeah i bought one on ebay dual pack $230
link? USD? or CAD?

the one im looking at is more expensive
__________________
M0D3RAT0R

Gh0stRider's Buy & Sell Feedback


Quote:
Originally Posted by CharlieH View Post
whole time i thought gh0strider was white lol

Gh0stRider is offline   Reply With Quote
Old 07-10-2013, 01:12 PM   #22
VAC Head Rotang Mod

Raid3n's Avatar

Join Date: Oct 2004
Location: GP
Posts: 10,377
Thanked 1,180 Times in 523 Posts
i'd be in for splitting a sena dual pack haha
__________________
1990 FC3S
1984 GSX-R 400
2001 CBR600F4i

My Feedback (10-0-0)

Quote:
Originally Posted by Fei-Ji View Post
haha i can taste the cum in my mouth
Raid3n is offline   Reply With Quote
Old 07-10-2013, 01:40 PM   #23
Rider

Qasual's Avatar

Join Date: Nov 2008
Location: Vancouver, BC
Posts: 589
Thanked 118 Times in 44 Posts
GROUP BUY ?!
__________________
1987 Corolla GTS Hatchback. [COLOR="Red"]<3[/COLOR] Since June 2008
Qasual is offline   Reply With Quote
Old 07-10-2013, 05:16 PM   #24
Willing to sell body for a few minutes on RS

quasi's Avatar

Join Date: Jul 2001
Location: Cloverdale
Posts: 10,228
Thanked 2,278 Times in 826 Posts
I use something similar to this, they don't move. The only disadvantage would be no volume control on the headphones I have. I like the ones Gwillo posted, I might actually buy those, I like the volume control.

__________________



“The world ain't all sunshine and rainbows. It's a very mean and nasty place... and I donīt care how tough you are, it will beat you to your knees and keep you there permanently, if you let it. You, me or nobody, is gonna hit as hard as life. But ain't about how hard you hit... It's about how hard you can get hit, and keep moving forward... how much you can take, and keep moving forward. Thatīs how winning is done. Now, if you know what you worth, go out and get what you worth.” - Rocky Balboa
quasi is offline   Reply With Quote
Old 07-10-2013, 05:48 PM   #25
Where's my RS Christmas Lobster?!

double0seven's Avatar

Join Date: Jan 2010
Location: RichCity
Posts: 866
Thanked 362 Times in 129 Posts
Quote:
Originally Posted by QuocAE86 View Post
GROUP BUY ?!
yessssssssssssssssssssss
double0seven is offline   Reply With Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are Off



All times are GMT -8. The time now is 06:27 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
SEO by vBSEO ©2011, Crawlability, Inc.
Revscene.net cannot be held accountable for the actions of its members nor does the opinions of the members represent that of Revscene.net
