Best K swap for a DD

Holy shit this forum is dead. What happened to all the fanboi's?

So I've been accumulating parts for a future project that I have in mind - either a Fit or EP3, K swap. Essentially, a modern day B/H, EG. I have the K24A2 and K20Z3 drivetrains, wiring, accessories.

I want to keep it clean, reliable and as OEM as possible. 99% street driven.

I'm thinking K24A2 (TSX) and 6spd LSD (FG2, Civic Si), with a tune. Improved low/mid RPM power, that can still pull to 8k, occasionally.

I have a K20A2 head, intake, oil pump, wp housing and oil pan, to build a Frankenstein but I don't foresee myself winding it out often enough to reap the benefits of top end HP.

Opinions?

Which engine harness should I use? The K24 doesn't have connectors at the engine bay. Should I use the one off the K20Z3? A2?

Which intake manifold? I'm guessing PRC for the 24, RBC if I swap heads?


Danke
Advertisement
__________________
feedback

Originally posted by v.b.
can we stop, my pussy hurts...
Originally posted by asian_XL
fliptuner, I am gonna grab ur dick and pee in your face, then rub shit all over my face...:lol
Originally posted by Fei-Ji
haha i can taste the cum in my mouth
Originally posted by FastAnna
when I was 13 I wanted to be a video hoe so bad


RSUV #7
fliptuner is offline   Reply With Quote
Old 01-21-2020, 03:23 PM   #2
Orgasm Donor & Alatar owned my ass twice!

Traum's Avatar

Join Date: Aug 2007
Location: Paradise, BC
Posts: 6,910
Thanked 6,639 Times in 2,675 Posts
Failed 253 Times in 139 Posts
Instead of fapping on pr0n and blowing $$$ on cars, chicks, and drinks (hopefully in that order?), I think most of the fanbois have traded in their tuner rides for minivans or biga$$ family haulers. Or they've gone from $8/hr baller to $80+/hr baller, so they are rocking legit German machinery now instead of hopping up ghetto Civics and Silvias.
Traum is offline   Reply With Quote
This post thanked by:
Old 01-21-2020, 03:41 PM   #3
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
You always want to use the K20a2 (02-04 RSX-S) Engine Harness
almost all kits on the market today run off that set up

Don't forget your engine management.
Hondata Kpro
Or K-Tunner

GD3 Fit is very expensive for a Kswap because of the first generation Canbus system requires custom wiring if you want all your HVAC ect to work.
newer fits are great for a K24swap

Your K20z3 transmission might be a great choice on paper.
but like the engine harness, most swap kits (motor mounts and shifter boxes) are made for the K20a2 (02-04 RSX-S)
IIRC the shifter mechanism for k20z3 trans moves in the opposite oriantation as the RSX's shifter box
plus the K20z3 transmission different mounting points - and most kits are based off the K20a2 transmission
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.

Last edited by PK-EK; 01-21-2020 at 03:55 PM.
PK-EK is offline   Reply With Quote
Old 01-21-2020, 03:50 PM   #4
Pull Out Towing. Women rescued for free.

SumAznGuy's Avatar

Join Date: Mar 2002
Location: Hongcouver
Posts: 8,449
Thanked 2,414 Times in 1,283 Posts
Failed 128 Times in 71 Posts
Quote:
Originally Posted by PK-EK View Post
Your K20z3 transmission might be a great choice on paper.
but like the engine harness, most swap kits (motor mounts and shifter boxes) are made for the K20a2 (02-04 RSX-S)
IIRC the shifter mechanism for k20z3 trans moves in the opposite oriantation as the RSX's shifter box
plus the K20z3 transmission different mounting points - and most kits are based off the K20a2 transmission

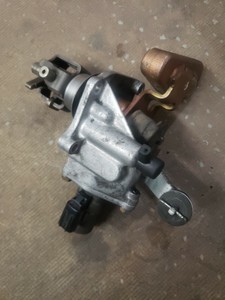

I have a z3 trans mated to my K20/24. I ended up using the shifter from a regular a2 trans. 3 of the 4 holes worked. We just JB welded the other corner.
You will need to get a yellow box to get the speedo to work as the z3 runs a different speedo ring gear or something along those lines.

Been too long, memory is foggy.

I should still have the parts to frankenstein a proper shifter for the z3 trans.
__________________
Originally posted by Iceman_19 you should have tried to touch his penis. that really throws them off.
Originally posted by The7even SumAznGuy > Billboa
Originally posted by 1990TSI SumAznGuy> Internet > tinytrix
Quote:
Originally Posted by tofu1413 View Post
and icing on the cake, lady driving a newer chrysler 200 infront of me... jumped out of her car, dropped her pants, did an immediate squat and did probably the longest public relief ever...... steam and all.

(11-0-0) Buy/Sell rating
Christine
Shitvic
Pull Out Towing
SumAznGuy is offline   Reply With Quote
Old 01-21-2020, 03:53 PM   #5
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
I did not know 3/4 bolts lined up


Just an FYI

you can't buy those Shifter Mechanism's new from Acura/Honda
so if you're going to go that route, you'll have to find a used one

__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.

Last edited by PK-EK; 01-22-2020 at 02:03 PM.
PK-EK is offline   Reply With Quote
This post thanked by:
Old 01-21-2020, 03:54 PM   #6
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
EP3 will be the easiest and cost effective way.

No wiring, no axles, no mounts
all plug and play

you can even put all your K20z3 transmission guts into the EP3 transmission case
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.

Last edited by PK-EK; 01-22-2020 at 02:03 PM.
PK-EK is offline   Reply With Quote
This post thanked by:
Old 01-21-2020, 03:58 PM   #7
Head of HR....have a seat on that couch

fliptuner's Avatar

Join Date: Jan 2003
Location: Coquitlam
Posts: 21,877
Thanked 15,598 Times in 4,324 Posts
Failed 284 Times in 130 Posts
Quote:
Originally Posted by Traum View Post
Instead of fapping on pr0n and blowing $$$ on cars, chicks, and drinks (hopefully in that order?), I think most of the fanbois have traded in their tuner rides for minivans or biga$$ family haulers. Or they've gone from $8/hr baller to $80+/hr baller, so they are rocking legit German machinery now instead of hopping up ghetto Civics and Silvias.
You forgot to mention paying for kids and $1M mortgages. Plus, if we didn't have cars to play with, we'd have to be inside, talking to our wives.


Quote:
Originally Posted by PK-EK View Post
You always want to use the K20a2 (02-04 RSX-S) Engine Harness
almost all kits on the market today run off that set up

Don't forget your engine management.
Hondata Kpro
Or Tunner

GD3 Fit is very expensive for a Kswap because of the first generation Canbus system requires custom wiring if you want all your HVAC ect to work.
newer fits are great for a K24swap

Your K20z3 transmission might be a great choice on paper.
but like the engine harness, most swap kits (motor mounts and shifter boxes) are made for the K20a2 (02-04 RSX-S)
IIRC the shifter mechanism for k20z3 trans moves in the opposite oriantation as the RSX's shifter box
plus the K20z3 transmission different mounting points - and most kits are based off the K20a2 transmission
Thanks, so Type S harness makes perfect sense and I take it, shift linkage, cables and box as well.

From my understanding, the (early) Type S shift arms can be made to fit the Z3 tranny with minor modification to 1 mount hole. Also, aftermarket VSS.

https://www.k20a.org/threads/diy-a-0...harness.46429/

I have to check but I think I read that late, Type S tranny's use the same shift pattern as the Z3. If so, as hard as it might be to source one, maybe I could use the shift arms/cables/box out of that?
__________________
feedback

Originally posted by v.b.
can we stop, my pussy hurts...
Originally posted by asian_XL
fliptuner, I am gonna grab ur dick and pee in your face, then rub shit all over my face...:lol
Originally posted by Fei-Ji
haha i can taste the cum in my mouth
Originally posted by FastAnna
when I was 13 I wanted to be a video hoe so bad


RSUV #7
fliptuner is offline   Reply With Quote
This post thanked by:
Old 01-22-2020, 07:15 AM   #8
Media Officer / MOD

!Aznboi128's Avatar

Join Date: Apr 2001
Location: vancouver
Posts: 28,077
Thanked 5,752 Times in 1,725 Posts
Failed 85 Times in 63 Posts
I would love to see/drive a k-swapped honda fit.... sooooooooo if you make one we can make a video
__________________
[NS]NiteShadow
my feedback (128-0-0)
Revscene Automotive Reviews
Quick link to personal reviews -> Website YouTube
Official Revscene Instagram Coordinator
!Aznboi128 is offline   Reply With Quote
This post thanked by:
Old 01-22-2020, 10:42 AM   #9
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
Quote:
Originally Posted by fliptuner View Post
............

I have to check but I think I read that late, Type S tranny's use the same shift pattern as the Z3. If so, as hard as it might be to source one, maybe I could use the shift arms/cables/box out of that?
I do not think the the 05-06 RSX-S and K20z3 transmissions are exactly the same
they might be very similar because of the VSS system
but as far as i know, the 02-04 and 05-06 have interchangeable shifter boxes and cables, making me think the shift pattern is not the same as a Z3

excuse my ignorance, i'm a hardcore RSX guy, so if its not really related to RSX K series stuff, i'm not always in the loop
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
Old 01-22-2020, 11:23 AM   #10
RS Veteran

bcrdukes's Avatar

Join Date: Dec 2001
Location: GTA
Posts: 29,786
Thanked 11,435 Times in 4,678 Posts
Failed 436 Times in 279 Posts
Fuck your Hondas they suck
__________________
Quote:
Originally Posted by JDMDreams View Post
Do you identify as lesbian
Quote:
Originally Posted by GLOW View Post
based on my haircut, maybe
bcrdukes is online now   Reply With Quote
Old 01-22-2020, 11:25 AM   #11
RS Veteran

bcrdukes's Avatar

Join Date: Dec 2001
Location: GTA
Posts: 29,786
Thanked 11,435 Times in 4,678 Posts
Failed 436 Times in 279 Posts
How is that for resurrecting this forum?
__________________
Quote:
Originally Posted by JDMDreams View Post
Do you identify as lesbian
Quote:
Originally Posted by GLOW View Post
based on my haircut, maybe
bcrdukes is online now   Reply With Quote
Old 01-22-2020, 12:03 PM   #12
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
go drink coffee on your moped somewhere else
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
This post thanked by:
Old 01-22-2020, 12:15 PM   #13
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
Quote:
Originally Posted by fliptuner View Post
.............
......
.......

I have a K20A2 head, intake, oil pump, wp housing and oil pan, to build a Frankenstein but I don't foresee myself winding it out often enough to reap the benefits of top end HP.
................

Danke
I'm bored at work, so here goes:

The TSX head you have is practically the same as the K20a2 head you (In terms of power and airflow)
so no need to use the K20a2 head
you will want to use the oil pump from the K20a2 as it is far superior in output and doesn't use a power robbing balancing shaft, also helps it rev out higher, 9000rpm is no problem for that pump (stock)

as for intake manifold, it depends on your chassis
RBC is the best and is a classic choice for a reason, i would stick to that personally as you won't have to modify (cut off) the water port using the TSX head.
but you might run into fitment problems with either Fit, EP3 should just be able to squeeze one in.

the oil pan you have is all in what chassis you're running, you might want to run a steel pan if you have low ground clearance, it's weaker, so if you hit something, it only wrecks the pan and not the bottom of the block; where an aluminum pan is stronger and might damage your block upon impact
spec a couple bucks and get a drop in baffle or have someone weld in a baffle while you have it out,
it'll be something you wish you did but didn't if you don't do it while you're building the motor.
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.

Last edited by PK-EK; 01-22-2020 at 12:38 PM.
PK-EK is offline   Reply With Quote
This post thanked by:
Old 01-22-2020, 01:19 PM   #14
RS Veteran

bcrdukes's Avatar

Join Date: Dec 2001
Location: GTA
Posts: 29,786
Thanked 11,435 Times in 4,678 Posts
Failed 436 Times in 279 Posts
interference engines
__________________
Quote:
Originally Posted by JDMDreams View Post
Do you identify as lesbian
Quote:
Originally Posted by GLOW View Post
based on my haircut, maybe
bcrdukes is online now   Reply With Quote
Old 01-22-2020, 01:29 PM   #15
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
PK-EK's Dream N/A OEM plus K series build

K24a2 (from a 06 TSX) engine
K20a2 Type S oil pump
RBC intake manifold
Fresh Seals and Fresh timing chain with New OEM tensioner
Maybe oversized stock K24a2 pistons if i was rebuilding the bottom end

5.06 Final drive from FD2R (quick acceleration)
TSX CL9 6th gear (long 6th gear, perfect for highway cruising)
OEM honda LSD (all DC5/FD2/EP3 type Rs use the same one from a 8th gen Civic Si)

installed in an EG CX for that classic Honda Old school look
perfect Sunday cruiser car.

or installed in a DC2/EK chassis if i wanted it to be more comfortable with power options if it was driven every day to work and such.
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
Old 01-22-2020, 01:49 PM   #16
RS Veteran

bcrdukes's Avatar

Join Date: Dec 2001
Location: GTA
Posts: 29,786
Thanked 11,435 Times in 4,678 Posts
Failed 436 Times in 279 Posts
wtf is an rbc intake manifold? sponsorship from Royal bank? jesus wtf
__________________
Quote:
Originally Posted by JDMDreams View Post
Do you identify as lesbian
Quote:
Originally Posted by GLOW View Post
based on my haircut, maybe
bcrdukes is online now   Reply With Quote
This post FAILED by:
Old 01-22-2020, 03:33 PM   #17
Ricer Mod

Berzerker's Avatar

Join Date: Mar 2005
Location: Smithers
Posts: 7,008
Thanked 5,276 Times in 1,501 Posts
Failed 214 Times in 74 Posts
I've been contemplating all these things for my Element. Sourcing a K24A2 for a reasonable price has been a challenge. Part of me just wants to turbo my stock motor and be done but the other part wants a better base platform with the A2. Shitty thing is, my motor wont allow me to do a Frank build (conflicting reports of piston clearance) so I would have to get a different K24 long block and swap an A2 head on it. (let me know if you're selling that head and stuff.

Berz out.
__________________
President of RS Beat Down Crew
Berzerker is offline   Reply With Quote
Old 01-22-2020, 04:25 PM   #18
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
Might be able to get away with using your stock block and a A2 head if you played with head gaskets with different thicknesses. That's what I read online.
Or get some used TSX positions/rods on the cheap and do a mild botten end refresh.
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
Old 01-22-2020, 08:51 PM   #19
Head of HR....have a seat on that couch

fliptuner's Avatar

Join Date: Jan 2003
Location: Coquitlam
Posts: 21,877
Thanked 15,598 Times in 4,324 Posts
Failed 284 Times in 130 Posts
I pretty much have all the parts you listed, since I parted out all 3 cars lol. K24A2/tranny, K20Z3/tranny, K20A2 head, intake/TB, water pump/t-stat housing, front cover, oil pan/baffle/pump.

@Berz, what's a fair price for a K24A2?

I only want to do this in a Fit or EP3 cause I want to keep the drivetrains in the same gen. My EG has a B20Z VTEC/B16 tranny for that reason.

If space or time become issues and I can't get this started, all this shit is going to be up for sale.
__________________
feedback

Originally posted by v.b.
can we stop, my pussy hurts...
Originally posted by asian_XL
fliptuner, I am gonna grab ur dick and pee in your face, then rub shit all over my face...:lol
Originally posted by Fei-Ji
haha i can taste the cum in my mouth
Originally posted by FastAnna
when I was 13 I wanted to be a video hoe so bad


RSUV #7
fliptuner is offline   Reply With Quote
Old 01-23-2020, 09:51 AM   #20
Ricer Mod

Berzerker's Avatar

Join Date: Mar 2005
Location: Smithers
Posts: 7,008
Thanked 5,276 Times in 1,501 Posts
Failed 214 Times in 74 Posts
Quote:
Originally Posted by fliptuner View Post
@Berz, what's a fair price for a K24A2?

Honestly I'm not even sure but anywhere close to 1k would be nice if I could find one.

Berz out.
__________________
President of RS Beat Down Crew
Berzerker is offline   Reply With Quote
Old 01-23-2020, 09:52 AM   #21
Ricer Mod

Berzerker's Avatar

Join Date: Mar 2005
Location: Smithers
Posts: 7,008
Thanked 5,276 Times in 1,501 Posts
Failed 214 Times in 74 Posts
Quote:
Originally Posted by PK-EK View Post
Might be able to get away with using your stock block and a A2 head if you played with head gaskets with different thicknesses. That's what I read online.
Or get some used TSX positions/rods on the cheap and do a mild botten end refresh.
Some people say it works, other say there's slap so I don't know. I thicker headgasket seems like a bandaid and not the best way to go about things.

Berz out.
__________________
President of RS Beat Down Crew
Berzerker is offline   Reply With Quote
Old 01-23-2020, 10:27 AM   #22
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
car-parts.com

K24a2 from TSXs start at $500 CAD
from Canadian junk yards...
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
This post thanked by:
Old 01-23-2020, 12:52 PM   #23
Pull Out Towing. Women rescued for free.

SumAznGuy's Avatar

Join Date: Mar 2002
Location: Hongcouver
Posts: 8,449
Thanked 2,414 Times in 1,283 Posts
Failed 128 Times in 71 Posts
Quote:
Originally Posted by PK-EK View Post
car-parts.com

K24a2 from TSXs start at $500 CAD
from Canadian junk yards...
that's pretty cheap. Good to know.
__________________
Originally posted by Iceman_19 you should have tried to touch his penis. that really throws them off.
Originally posted by The7even SumAznGuy > Billboa
Originally posted by 1990TSI SumAznGuy> Internet > tinytrix
Quote:
Originally Posted by tofu1413 View Post
and icing on the cake, lady driving a newer chrysler 200 infront of me... jumped out of her car, dropped her pants, did an immediate squat and did probably the longest public relief ever...... steam and all.

(11-0-0) Buy/Sell rating
Christine
Shitvic
Pull Out Towing
SumAznGuy is offline   Reply With Quote
Old 01-23-2020, 02:44 PM   #24
Ricer Mod

Berzerker's Avatar

Join Date: Mar 2005
Location: Smithers
Posts: 7,008
Thanked 5,276 Times in 1,501 Posts
Failed 214 Times in 74 Posts
Quote:
Originally Posted by PK-EK View Post
car-parts.com

K24a2 from TSXs start at $500 CAD
from Canadian junk yards...
Are all TSX A2?

Berz out.
__________________
President of RS Beat Down Crew

Last edited by Berzerker; 01-23-2020 at 02:49 PM.
Berzerker is offline   Reply With Quote
Old 01-23-2020, 02:48 PM   #25
うに

PK-EK's Avatar

Join Date: Apr 2008
Location: /
Posts: 1,312
Thanked 1,008 Times in 402 Posts
Failed 136 Times in 68 Posts
Quote:
Originally Posted by Berzerker View Post
How do you use that search function to limit to type S motors?

Berz out.
TSX's never came with a Type S option

they all came with the K24a2 engine

Look for an automatic one, less likely it's been bagged on
and the 2006+ ones have the better cam shafts in them
__________________
Quote:
Originally Posted by TOS'd View Post
The reason for Speak it Out is to actually set PK-EK up with someone, whether that be someone from this thread or outside of RS.
PK-EK is offline   Reply With Quote
Reply

Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are Off



All times are GMT -8. The time now is 03:55 AM.


Powered by vBulletin® Version 3.8.11
Copyright ©2000 - 2024, vBulletin Solutions Inc.
SEO by vBSEO ©2011, Crawlability, Inc.
Revscene.net cannot be held accountable for the actions of its members nor does the opinions of the members represent that of Revscene.net
